Mid Range aVS

The Mid-Range aVS provides two or four bi-directional SDI ports with genlock in a 1U chassis with redundant power supplies and offers at least 3 TB (usable) of internal storage protected by a hardware-based RAID array.

Product Code: AQVS34041DM0 (four-port / 3 TB usable version) - other configurations are available
Item: aQ Video Server, gen3, Hybrid, 1U, four-port SD/HD, SDI, mid-range, 3 TB (hardware RAID), redundant PSU
aVS, third generation system
Four-port SD/HD video server with redundant PSU in a 1U chassis.
Each port individually configurable as recorder or player, with SDI input & SDI output (with embedded audio). Output ports provided as two pairs, each pair with shared genlock input.
Storage: four internal HDD providing approximately 3 TB usable storage in a hardware RAID configuration.
On-board VGA, 1GigE NIC
Firmware: aQ v4 firmware installed.
1U, 437 x 650 x 43 mm (17.2" x 25.6" x 1.7"), rack rails included.
Not included: power cord, keyboard, mouse, monitor, network cable.

Hardware details:

  • 1U Chassis
  • Depth: approx. 65 cm
  • Weight: approx 12 Kg
  • Dual PSU
  • Front indicators: Power, Hard drive activity, 2 x Network activity, System overheat
  • Front buttons: power on/off, system reset

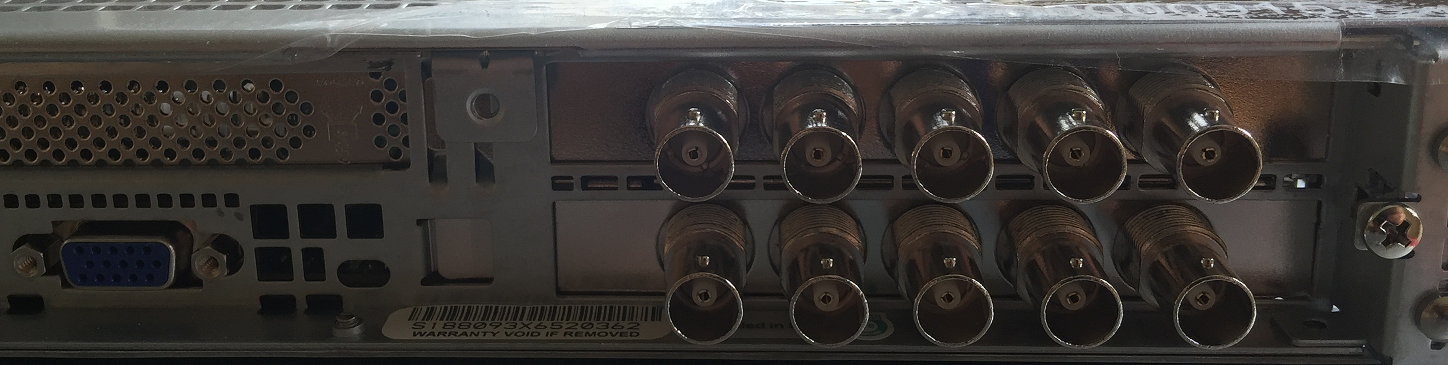

  • Rear connections: 2 x USB 2.0, 2 x USB 3.0, 2 x 1GigE NIC, 1 x VGA, 1 x RS232 serial
  • AV I/O:
    • 1 x shared genlock input, Port 3 Input, Port 3 Output, Port 4 Input, Port 4 Output
    • 1 x shared genlock input, Port 1 Input, Port 1 Output, Port 2 Input, Port 2 Output
  • Four 1 TB HDD, rated for continuous operation, in removable (but not hot-swappable) caddies
  • Hard drive configuration: battery-backed, hardware RAID
  • Power supply: 500W High-Efficiency Power Supply (certification 80 Plus Platinum)
  • AC input:100-240V, 50-60Hz, 6.1-2.6A
  • Power Supply Safety / EMC: USA - UL listed, FCC | Canada - CUL listed |Europe/CE Mark | EN 60950/IEC 60950-Compliant
  • Internal cooling: 4 x 4cm high-performance fans
  • Temperature range: 5°C ~ 35°C (41°F ~ 95°F) [operating] / -40°C ~ 60°C (-40°F ~ 140°F) [storage]
  • Humidity range: 8% ~ 90% (non-condensing) [operating] / 5% - 95% (non-condensing) [storage]

What's in the box:

  • aVS (1U chassis)
  • Removable front bezel
  • pair of rack rails
  • aQ v4 firmware pre-installed

What's not included:

  • power cords
  • keyboard, mouse, monitor
  • network / AV cables
